Bracing Cord / Surge Rope / Support Cord


Characteristics

  • Available in Glass Fiber and High Tenacity Polyester Yarn Braiding.
  • Round Braided Cord Specially designed for Over hang.
  • Suitable for VPI (Vacuum Pressure Impregnation) System.
  • Excellent Varnish / Resin Absorption Capacity.
  • Filled with Special Untreated Glass Fiber.
  • 100% European Material and Technology is used.
  • Oil Dextrine Free Glass Fiber used.
  • Ropes available in untreated & accelerator treated form.
 Bracing Cord

Compressibility

This cord gives a compressibility of 40% to 55% when pressed under 30N/cm load and regain>80% of original Dia on release of load.


Applications

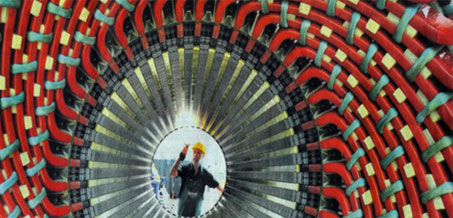

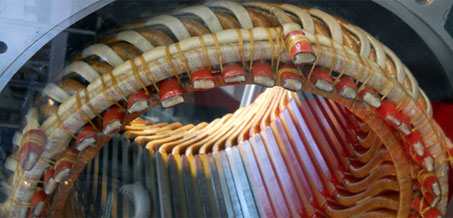

This rope is used to support overhang coils in rotating machines. This product absorbs impregnating varnish / resin and on curing forms a hard support for coil to give vibration free overhang.

 Bracing Cord
DIA (MM) Roll Length (MTRS.)
5 800
6.5 600
10 250
15 200
20 100
25 100
30 100
40 50
50 50
Bracing Cord
